Bilbao, Spain

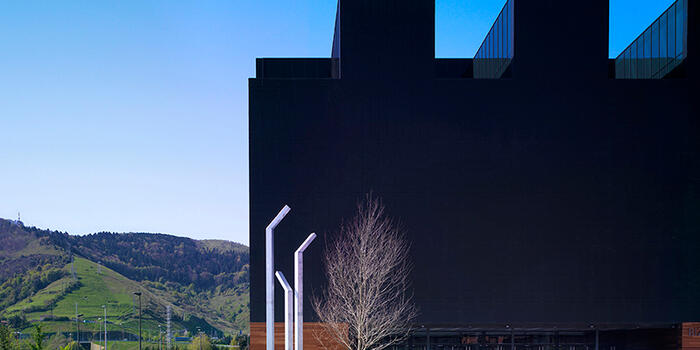

The building is located on the outskirts of the city - at the far end of the urban extension of Bilbao’s Miribilla district. One side fronts the terraced land, the countryside, the mountains and the access road to the city. The other side faces adjacent residential blocks and the park in the south. The design plays with volume and scale such that it links with its immediate surroundings and the distant scenery. Thus, the nearly blind facade facing the highway becomes a perforated form in its contact with the dwellings. Viewed from afar the form appears as a mass of black slate. An abstract object which smoothes its contact with the pedestrian through a cedar wood base.

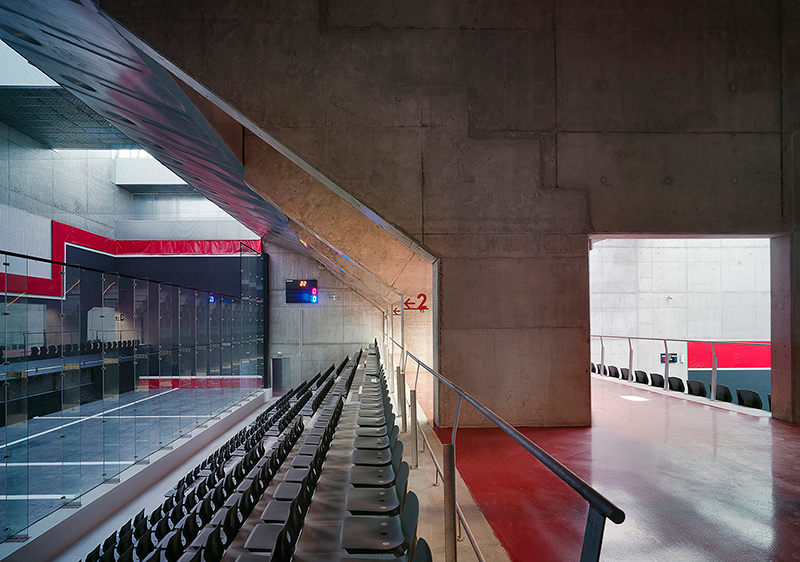

Inside, the building is divided into two parts according to use: the office area and the sports area which includes the ‘Fronton’ court and the ‘Trinquete’. The interior is constructed as an articulation of large empty spaces generated by the structure of the spectator stands. It is a continuous and open space ranging sequentially from the compression of the corridors to the expanded areas designed for congregation and sport. An interior landscape has been created full of visual and spatial connections.

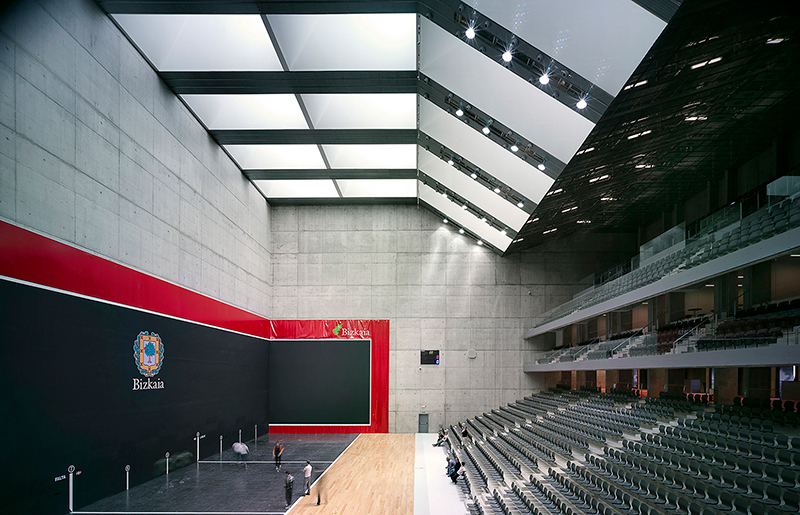

The elevation differences between the two ends of the plot are used to separate the entrances and define the internal walkway layout. From the South, access is gained to the offices of the Sporting Federations of Biscay via the pedestrian street. From the North, and on an upper level the Fronton and the Trinquete can be reached via the main square that continues inside the building and becomes a large indoor public court. Access is below the level of Fronton and beyond it unfolds the great space of the Fronton. From the entrance, it is seen halfway up with the rows of spectator stands to extend down towards the pitch and reaching up through its blind concrete walls of concrete that enclose the playing field and support the support the roof which illuminates the space.
The large mass, space, and the natural lighting evoke the sensation of being in one of the first outdoor playing fields. The skylight solution allows for a lot of light to enter, but it also focuses it on the playing area leaving the spectator on a different level that gradually ends up in darkness such that the sports areagains a kind of "theatrical effect".
Space is strictly defined by the structure which consists of a series of concrete walls and shielding pillars that are supporting surfaces of steps which in turn are superimposed upon each other. On the enclosing perimeter walls rests the metallic roof structure comprising large span steel trusses. The solidness bears the great spans but also defines the deep skylights they support and give form to the space they cover. The rhythm that arises in the structure enables the installations to be concentrated in the narrow bands and the natural daylight in the wide ones.
At the southern end of the building, with independent access, is an area of offices which is connected with the rest of the interior via a service bay. Light enters the building through deep vertical shafts whose form protects them from direct sunlight. The resulting layout of the office floors is that of a trident where each bay receives lighting from two angles. A large functional surface area is gained from a compact form, avoiding the appearance of very recessed areas of work whilst preserving the overall shape of the building.
These perforations on the solid mass that the building comprises, besides illuminating and intentionally ambiguously playing with the building’s scale, also allow the game to emit its light at night. The presence of this blind object, with its solid and stony mass, from which light seeps via holes from of its hollow interior, gives a sense of the activity within. It is an urban experience at the city’s limits.
